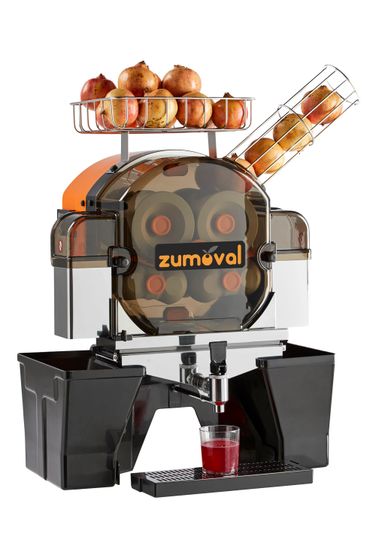

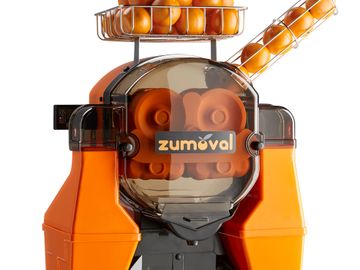

Big Basic

FOR BIG FRUITS: ORANGES, POMEGRANATES, gRAPEFRUITS

The perfect solution for grocery stores, juice bars, restaurants and hotels, where different big fruits have to be squeezed. The stainless steel feeder tube allows you to mix different fruits.

TECHNICAL CHARACTERISTICS

 Speed
28 oranges per minute

Feeder capacity
5 units

Waste bin
18 kg
40 lbs

Fruit diameter
75-95 mm
2,95″-3,74″
65-80 mm (optional)
45-60 mm (optional)

Weight
44 kg
97 lbs

Power
0.55 kw

Consumption
4,1 / 3,7 A

Dimensions
62 cm x 43 cm x 70 cm
24,4” x 17,7” x 27,5”

Material

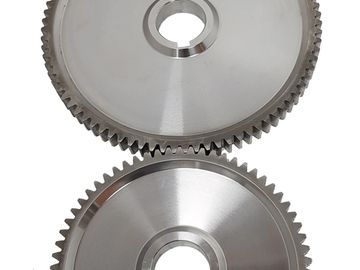

Stainless steel gears
Aluminum carter

Digital 3.0

Colors
Orange & Black
Silver & Black

Protection
IPx4

Safety
Proximity detectors

MYSS Squeezing system
Maximum yield squeezing
system without touching
the peel

PQ
Premium Quality

Video

Big Basic Pomegranate Juicer

FEATURES

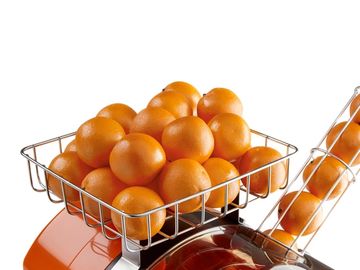

The Big Basic is equipped with a stainless steel feeder basket, which has a capacity of 5 kg of oranges.

  • The coverscreen of the Basic consistsof one piece which is easy to remove and easy to clean. The coverscreen is made of tritan, which is a very strong and resistant material.

The Basic is equipped with a stainless steel feeder tube which is easy to dismount and easy to clean. The citrus fruits can be easily inserted and can be mixed if so desired. So it is possible to make a combination juice.

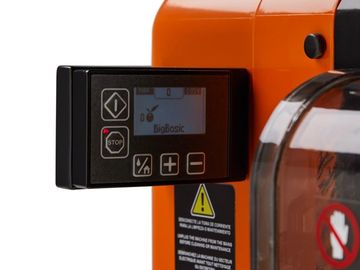

The Big Basic is equipped with a user friendly digital screen 3.0, which includes: fruit counter, operating mode (continuous or discontinuous), fruit selector, protection, energy saving, easy dismantling mode, automatic cleaning and peel bucket indicator.

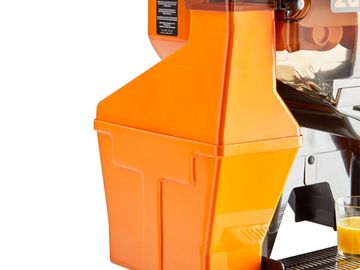

The Basic has a double waste bin capacity of 18 kg. The Digital 3.0 screen, will inform you when you have to empty the waste bin once it is full with peels.

The Basic is equipped with a  0.75 Hp motor. As a result, the Basic is one of the strongest and most robust machines on the market.


The machine is totally maintenance free, easy to take apart and easy to clean, in less than 5 minutes.

Add a footnote if this applies to your business

OPTIONS

The BIg Basic is available in a modern silver color. The back cover and waste bins will be in silver color instead of orange color.

The Big Basic can be equipped with our new improved self cleaning shower system, which consists of two high pressure water outlets that enable a quick and intense cleaning of the squeezing area, keeping the machine hygienic at any time. Additionally, it saves cleaning time.

The stainless steel self service tap is specially designed for self service all day long. By opening the tap, the machine starts squeezing and by closing the tap the machine stops. By turning around the handle of the tap, you can choose between continuous or discontinuous filling.

 The pulp-out filter allows you to eliminate seeds and pulp by just sliding the pulp-out sweeper to the side. In a second the filter is clean.
This option comes together with the stainless steel self service tap, allowing you to fill cups and bottles by just opening and closing the tap .

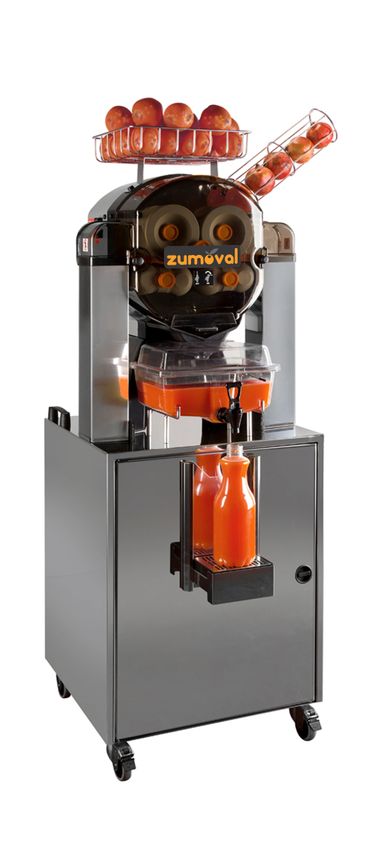

The pulp-out stand is the ultimate stand for supermarkets, allowing you to wipe the seeds directly into the waste bin inside the stand. It has been developed for places where a large amount of cups or bottles are filled by the owner or the customer.

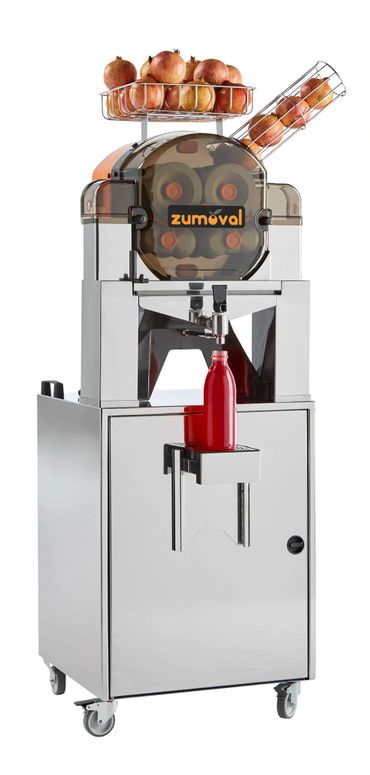

The self service stand is the perfect stand for when consumption is medium to high.

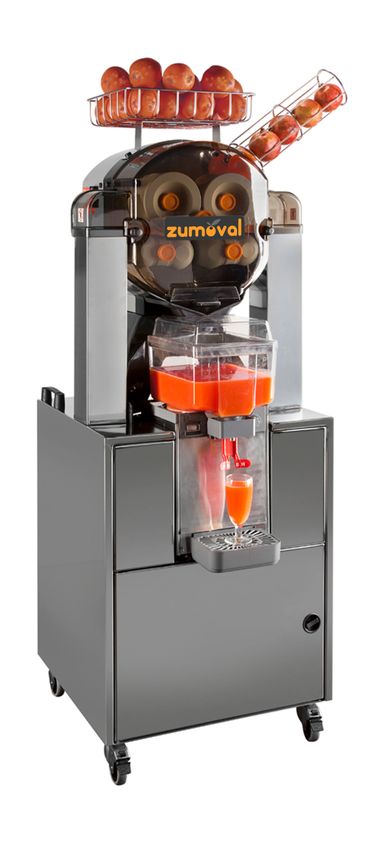

With it’s 5 liter storage, our dispenser stand will be able to offer you freshly squeezed juice without having to wait.

ACCESSORIES

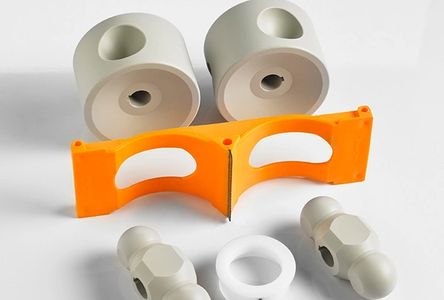

small squeezing kit


Perfect to squeeze small fruits such as small oranges, limes, mandarines and tangerines with a diameter from 45-60 mm.

BOTTLE HOLDER

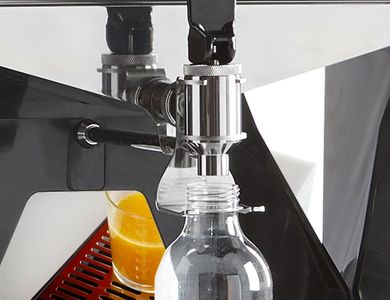

 The Zumoval bottle holder is attached to the stainless steel self service tap. It allows the customers to operate the machine with one hand, without having to hold the bottle.

VERSIONS
